Vertical Lift
TCL 3004
WORKING HEIGHT 8m
FULL BATTERY
SPECIFICATIONS
Max. Working Height
8,00m
Max.Platform Height
6,00m
Basket Dimensions
120cmx69cm
Main Body lmpression
146cmx76cm
Safe Working Load
200Kg.
Max. PowerExpended
250N
Working lnclination
0'
Max Wind Force
0mph
Max. Wheel Load
350 Kg
Working Sound
80Dba
CLOSED DIMENSIONS
Lenght
146cm.
Width
76cm.
Height
201cm
Weight
1100 kg.
BATTERY CHANGER SPECIFICATION
lnputVoltage
180-265V AC
Freguency
45-65 HZ
Output
24 V DC 7/8A
POWER SOURCE/LIFTING
Gear Box Motor
800W /24v
Hydraulic Pump
10cl.lx302
Hydraulic Tank
6 lt.

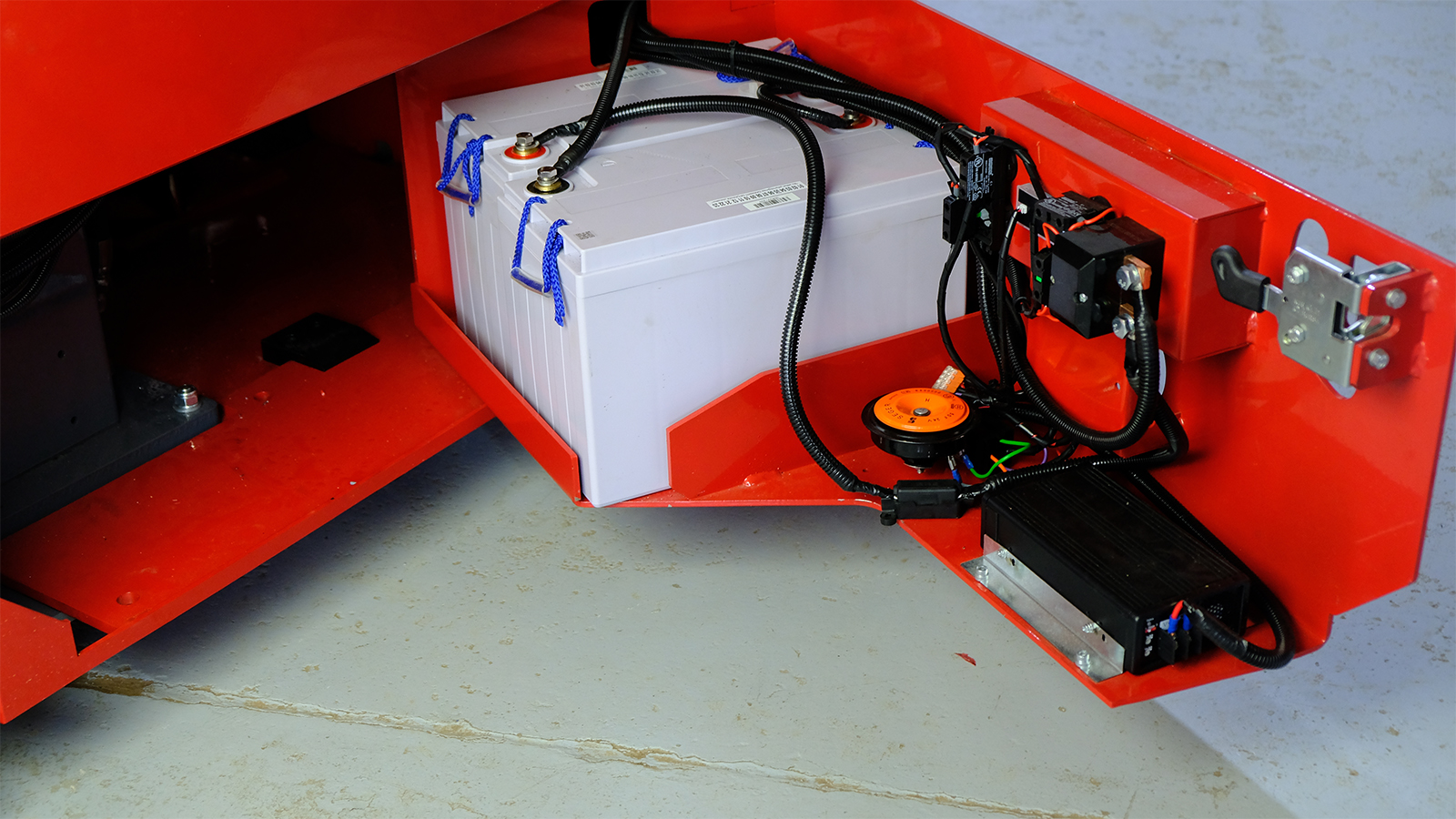

BATTERY SPECIFICATION
Battery Type
Dry Type
Battery Voltage
24 V
Battery Power
ll0Ah
POWER SOURCE/DRIVE
Gear Box Motor
750W
Gear Ratio
1:50
Motor Brake
20Kgf-cm
CONTROLLER
Controller Power
l00 Ah
Joystick Power
l00 Ah
Conroller Brand
TCLIFT
×
